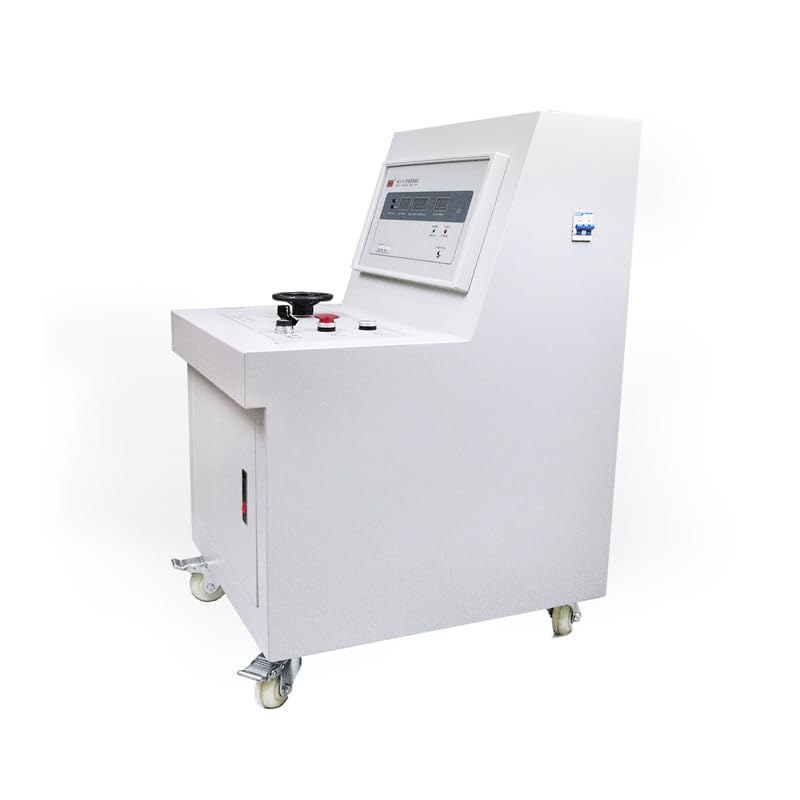

RK2672EM Withstanding Voltage Tester Hi-Pot Tester, Voltage AC 0-5kv DC 0-5KV, Current AC 0-500mA DC 0-200mA

RK2672E series high power, high current voltage tester is developed on the basis of absorbing and digesting international advanced voltage tester combined with the actual use of many users in China to improve and perfect. It can intuitively, accurately and quickly test the breakdown voltage, leakage current and other electrical safety performance indicators of various tested objects, and can be used as a high voltage source to test the performance of components and the whole machine.

• Test Voltage AC：0-5kV(±5%+ 3words)；Test Voltage DC：0-6kV(±5%+ 3words)；Leakage Current AC：0-2/20/200/500mA(+5%+3words)；Leakage Current DC：0-2/20/200mA(+5%+3words)
• Test Time：(0.0~999)S manual control；Output power(Pmax)：2500VA；Transformer Capacity：3000VA；Control Type：External Control interface；Alarm Type：Sound-light alarm；Voltage regulate：The output voltage is continuously adjustable；Preset current regulation：Preset potentiometer adjustment；Power Requirments：AC 220V+10% 50Hz/60Hz
• The output voltage through the regulator to adjust the output, with high reliability, high durability characteristics
• The use of high-brightness LED digital tube display test time, voltage, current, can display real-time breakdown current value and voltage value
• The alarm current can be set continuously
• The test time is displayed by three digit tube，Select the signal input and output required by PLC
